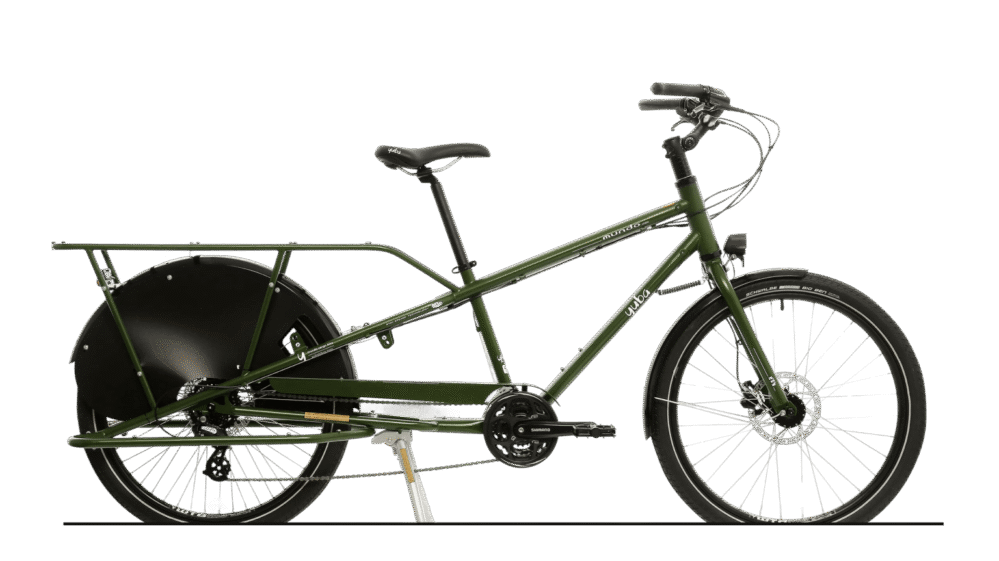

YUBA MUNDO LUX

YUBA MUNDO LUX - TECHNICAL SPECIFICATIONS

Frame
Type Long tail cargo bike
Frame Mundo V6 chrome-molybdenum alloy Cr-Mo 1.5"
Model Unisex, for cyclists from 150cm to 198cm
Dimensions 212 x 69 x 112 cm
Weight 26.3kg
Passengers 4 including cyclist
Maximum flow rate 250kg including rider
Wheels
Circles WTB SX23
Rays 36H
Tyres Schwalbe Big Ben RaceGuard 26" x 2.15"
Transmission
Change Shimano ST-EF505 3x9-Speed Integrated Shifter or S-Ride SL-M300 3-Speed + SL-M300C 9-Speed
Front derailleur Shimano FD-M370 Altus or S-Ride FD-M300
Rear derailleur Shimano RD-M2000 Altus 9-Speed or S-Ride RD-M310 9-Speed
Speed 9 speed
Chain KMC 9-Speed
Sprocket pack Shimano 11-36T 9-Speed or S-Ride 9-Speed Nickle 11-32T CS-M300
Crankset and crank Shimano FC-T3010 42T-32T-22T
Pedals Aluminium Flat
Brakes
Front brake Shimano BR-MT200 or Clarks M2
Rear brake Shimano BR-MT200 or Clarks M2
Rotors Shimano RT54 / RT56 180mm or Clarks 180mm
Levers Shimano ST-EF505 or Clarks M2
Components
Saddle Yuba Comfort
Seatpost Aluminium 30.9mm, 500mm
Handlebar 31.8mm City, adjustable stem 1.5" 100mm
Knobs Yuba Ergo with alloy connection
Roof rack 970mm
Included as standard 970mm
Features
Country of production United States
Warranty 2 years

Specifications are subject to change

suitable for cyclists from 150cm to 198cm tall

maximum load capacity 250kg (rider + cargo)

Please note that, when added together, the individual load ratings given for the rider and the load will exceed the total maximum load capacity. Therefore, although it is possible to maximise the individual load ratings selected by redistributing the weight, the sum of all loads must never exceed the certified maximum load capacity (rider+load ≤ 250kg/550lb).

276
60
95
102
238
180
238
336
70
155
54
276
36
24
60
30
5.00
