Designed like a two-wheeled SUV!

Yuba Mundo Bafang is Yuba's largest and sturdiest longtail pedal-assist cargo bike, the unbeatable electric model preferred by customers.

Designed for the family. Having children means having to carry a lot of things, especially when on the move. No wonder many parents think they have to buy an SUV. Yuba has developed an alternative to pollution, a two-wheeler that is sustainable and pleasant to drive. In terms of technology, load capacity and seating, the Yuba Mundo Lux perfectly suits the needs of a family of four. It has enough space for two children and two adults, can carry gigantic saddle bags, and your kids can enjoy the ride in a completely different way instead of behind the windows of a car.

Cargo for all intents and purposes. It has all the positive characteristics that a cargo bike must have, only it is more solid, easier to ride and more robust. It is relatively long compared to a longtail, and in its 97 centimetres of luggage rack there are an incredible number of possibilities: Picking up two kids from kindergarten with the weekly shopping on the rack? Mum, dad and baby walking on one bike? You don't need a bulky family car for that. No matter what you use the cargo bike for, the Yuba Mundo Lux will change your life!



Informazioni dettagliate

Traction system
Motor Bafang M215 250W 36V 80Nm
Permitted speed EU 25km/h, USA 20-28mph

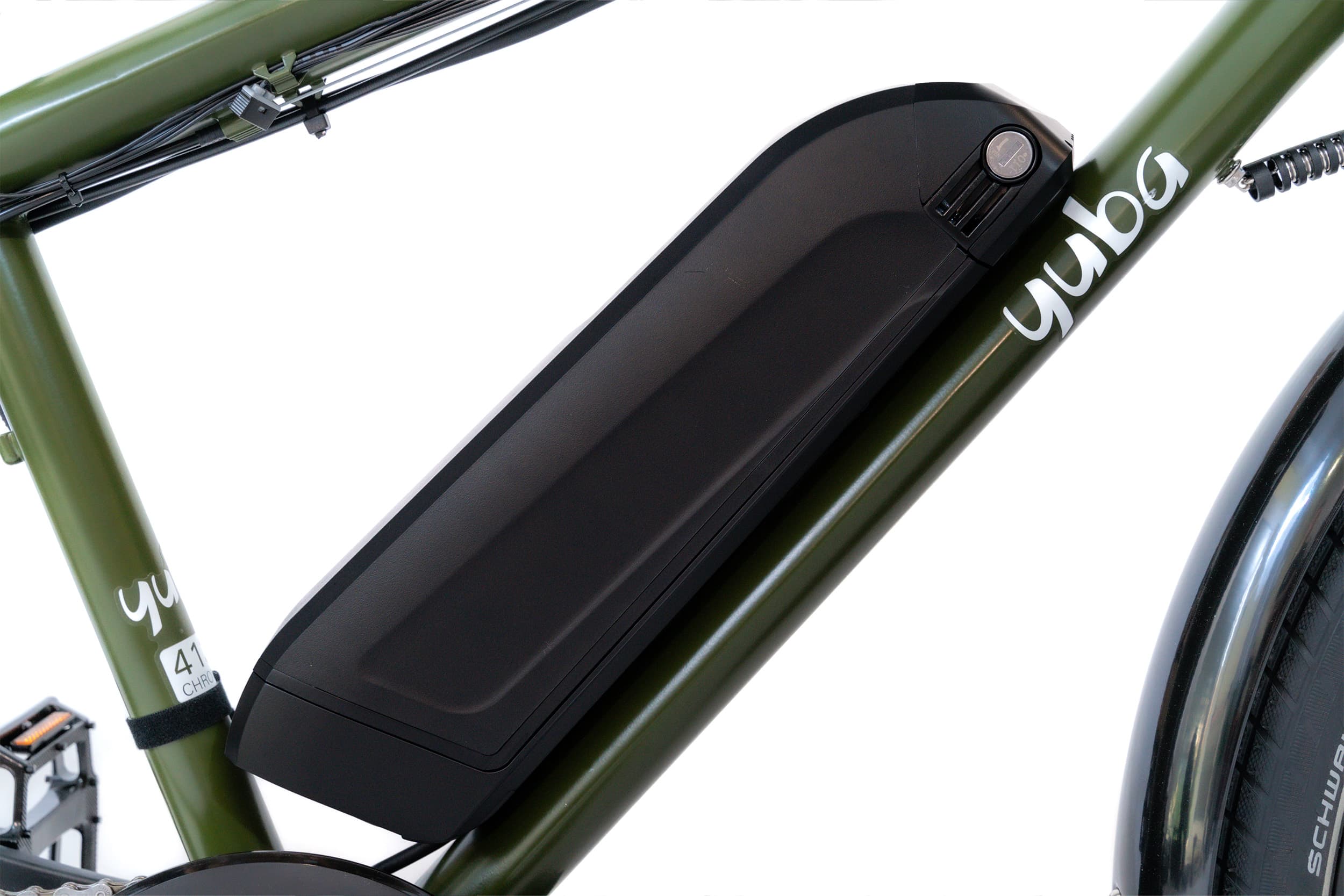

Battery Samsung Slide 540W/h Lithium-ion, extractable
Autonomy 80-100 km
Recharge time 4 hours, charge to 70% in 2 hours
Control display Bafang DP C965, 5 assistance levels + Walk Assist
Frame
Type Long tail pedal-assisted cargo bike

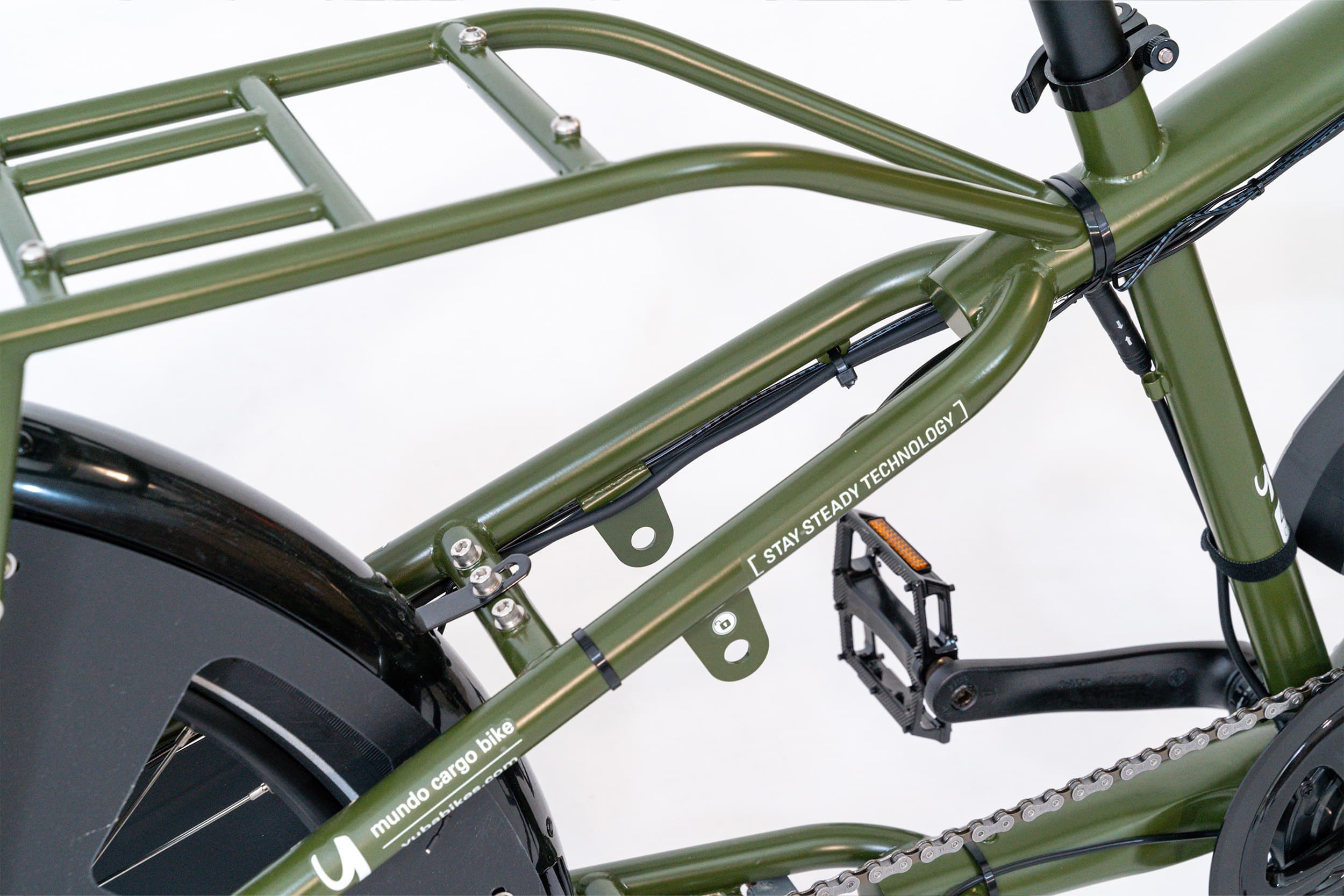

Frame Mundo V6 chrome-molybdenum alloy Cr-Mo 1.5"
Model Unisex, for cyclists from 150cm to 198cm
Dimensions 212 x 69 x 112 cm
Weight 30kg
Passengers 4 including cyclist
Maximum flow rate 250kg including rider
Wheels
Circles WTB SX23
Rays 36H
Tyres Schwalbe Big Ben RaceGuard 26" x 2.15"
Transmission
Change Shimano ST-EF505 3x9-Speed Integrated Shifter or S-Ride SL-M300 3-Speed + SL-M300C 9-Speed
Front derailleur Shimano FD-M370 Altus or S-Ride FD-M300
Rear derailleur Shimano RD-M2000 Altus 9-Speed or S-Ride RD-M310 9-Speed
Speed 9 speed
Chain KMC 9-Speed
Sprocket pack Shimano 11-36T 9-Speed or S-Ride 9-Speed Nickle 11-32T CS-M300
Crankset and crank Shimano FC-T3010 42T-32T-22T
Pedals Aluminium Flat
Brakes
Front brake Shimano BR-MT200 or Clarks M2
Rear brake Shimano BR-MT200 or Clarks M2

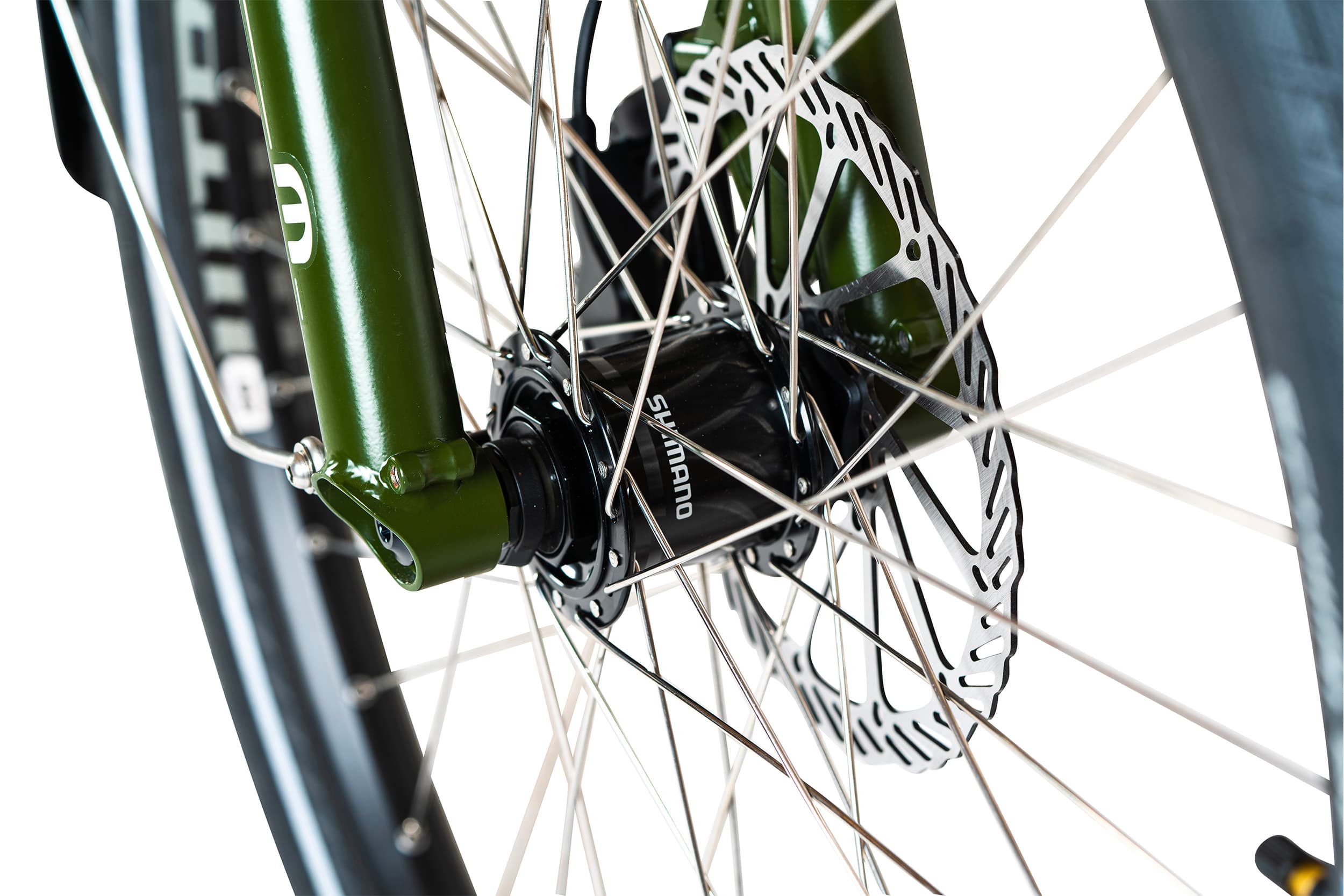

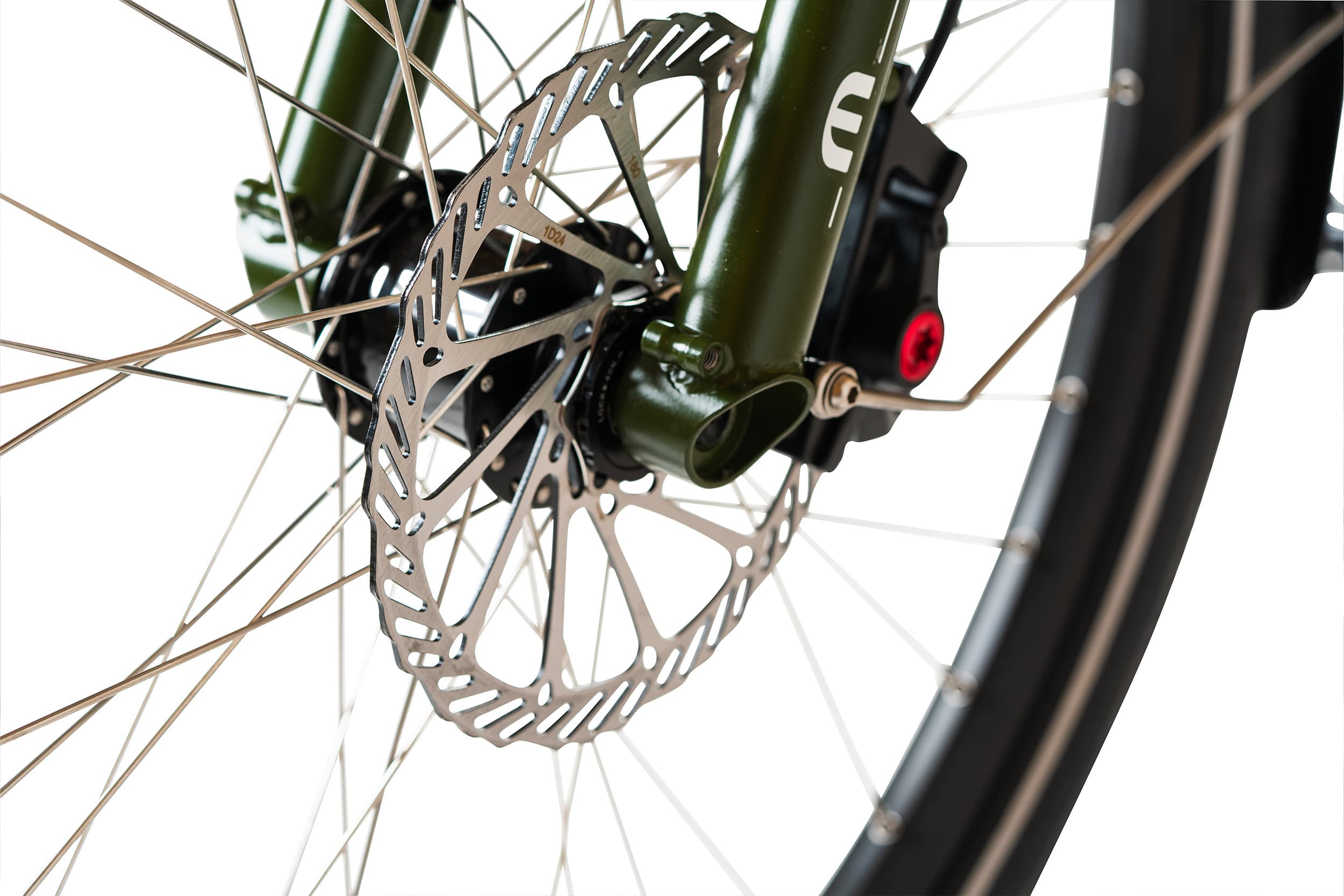

Rotors Shimano RT54 / RT56 180mm or Clarks 180mm
Levers Shimano ST-EF505 or Clarks M2
Components
Saddle Yuba Comfort
Seatpost Aluminium 30.9mm, 500mm
Handlebar 31.8mm City, adjustable stem 1.5" 100mm
Knobs Yuba Ergo with alloy connection
Roof rack 970mm

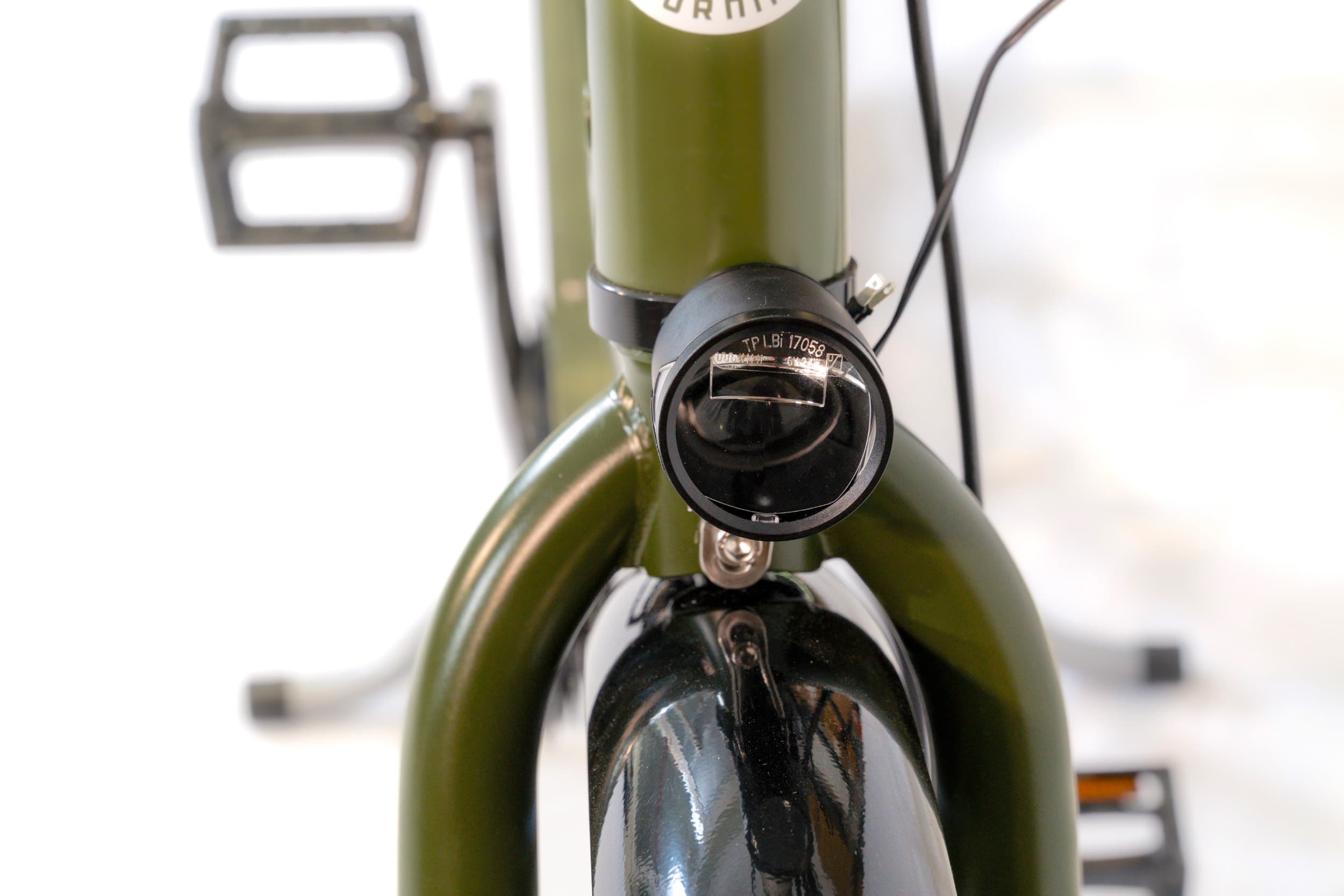

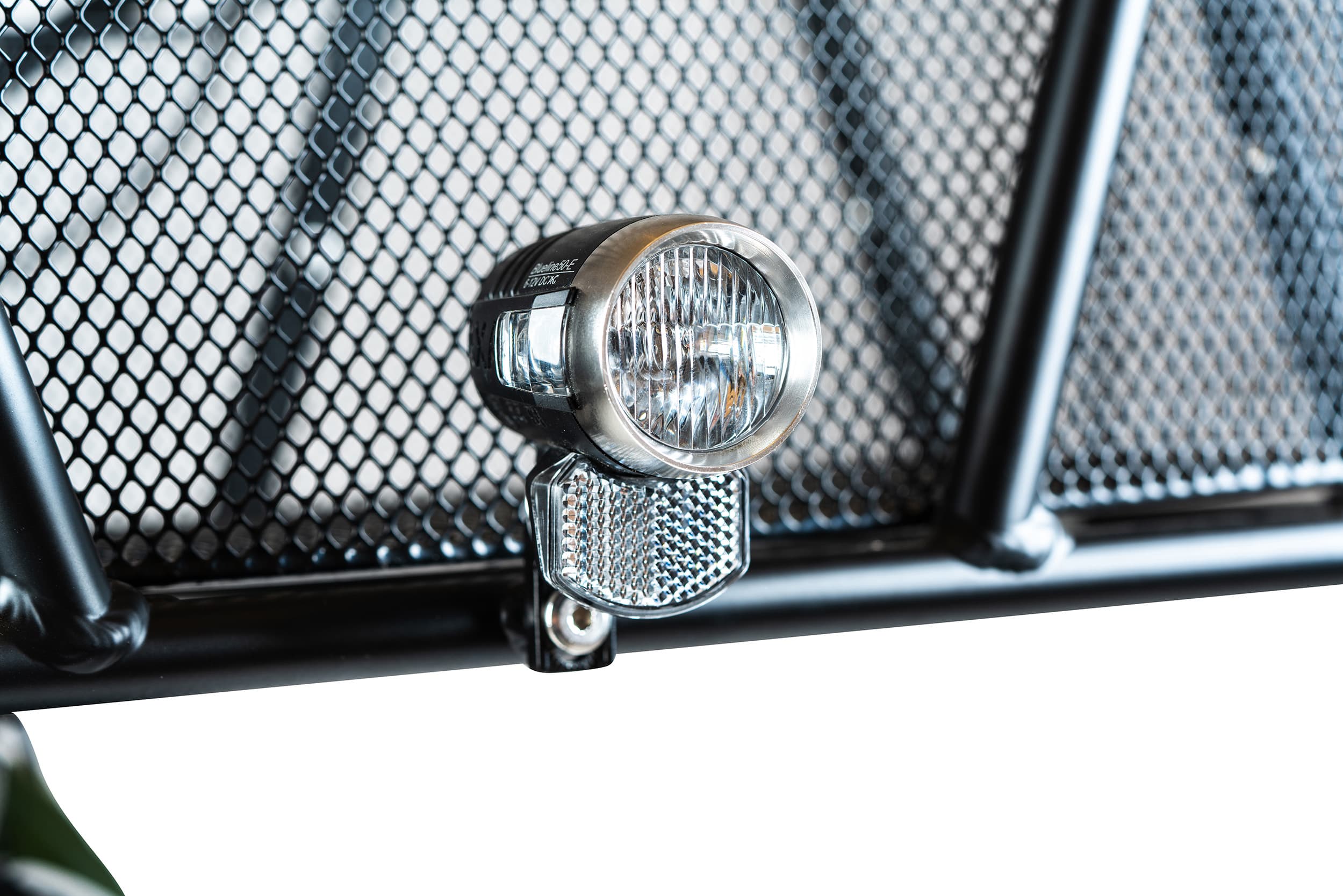

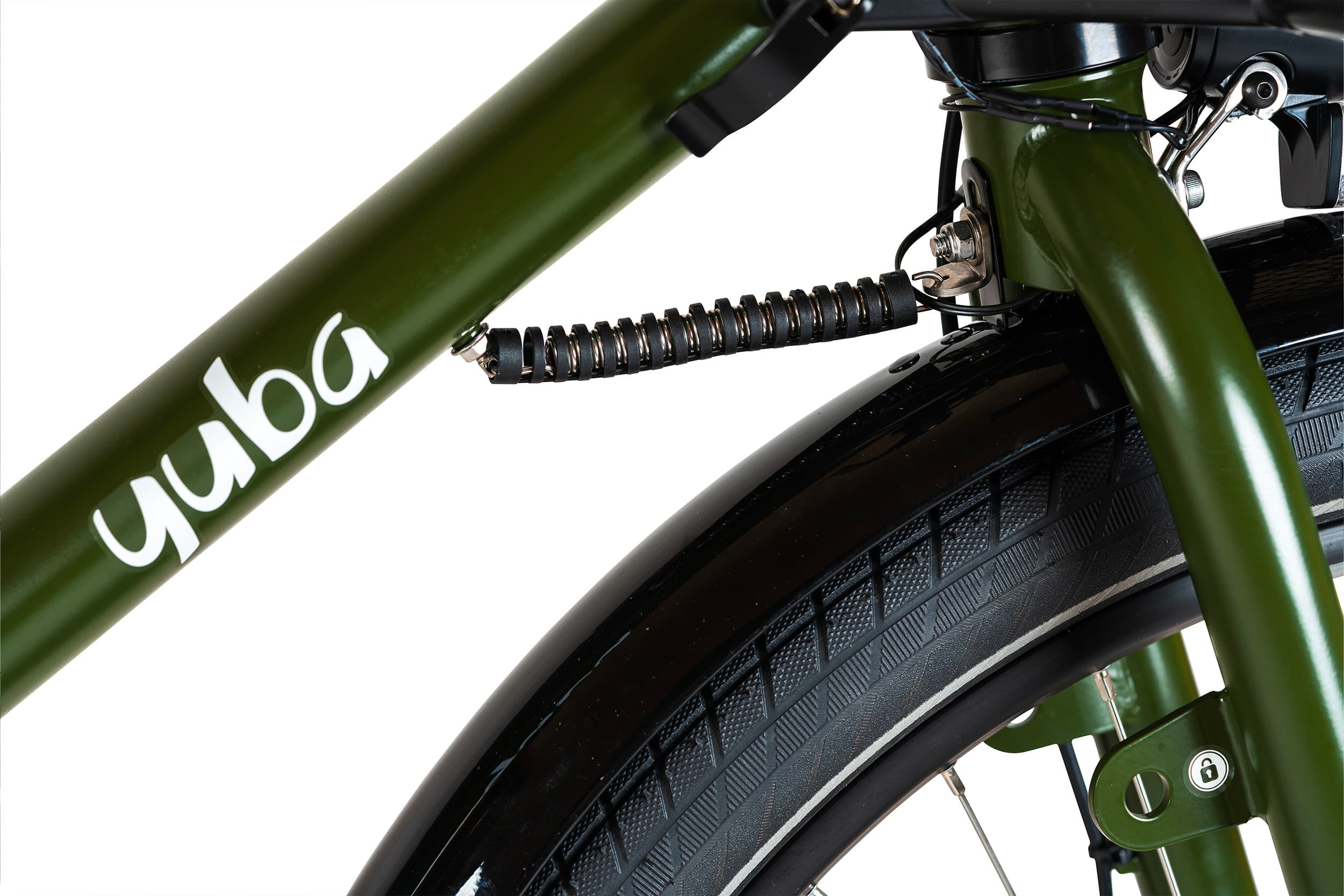

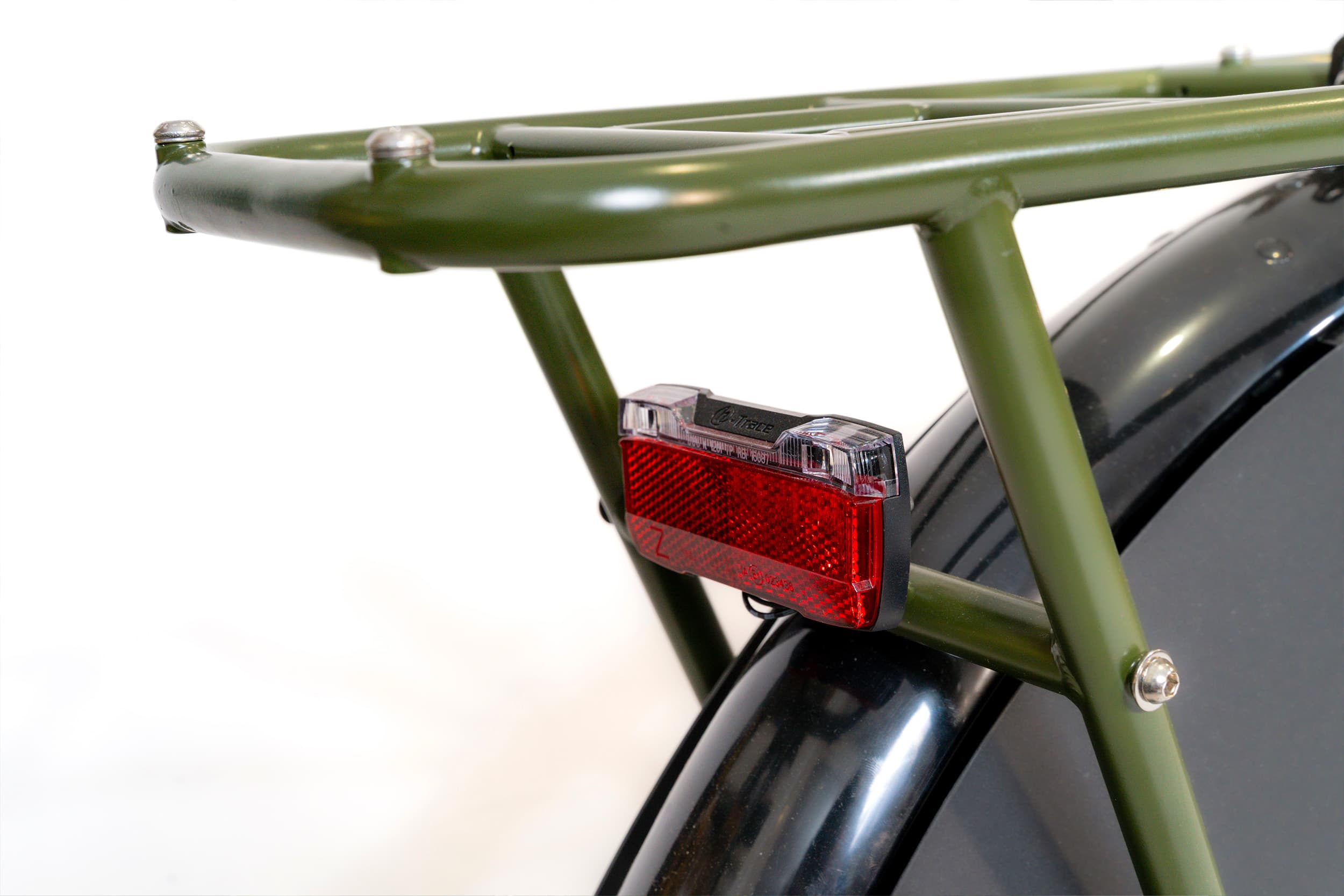

Included as standard Bell, double stand, mudguards, Hermans light kit, stabiliser spring
Features
Country of production United States
Warranty 2 years

suitable for cyclists from 150cm to 198cm tall

maximum load capacity 250kg (rider + cargo)

Please note that, when added together, the individual load ratings given for the rider and the load will exceed the total maximum load capacity. Therefore, although it is possible to maximise the individual load ratings selected by redistributing the weight, the sum of all loads must never exceed the certified maximum load capacity (rider+load ≤ 250kg/550lb).

Designed for new driving experiences

Bafang

Torque/Power : 80Nm/250W

Maximum speed : EU 25km/h, USA 20-28mph

Battery : 36V Ioni di litio

Control display : Bafang

Support level : 5 livelli di assistenza + Walk Assist

Weight : 3.8kg

Designed for fast driving experiences

Bafang

Torque/Power : 100Nm/350W

Maximum speed : EU 25km/h, USA 20-28mph

Battery : 36V Ioni di litio

Control display : Bafang

Support level : 5 + Walk Assist

Weight : 3.8kg

The engine for powerful driving experiences

Bafang

Torque/Power : 120Nm/500W

Maximum speed : EU 25km/h, USA 20-28mph

Battery : 48V Ioni di litio

Control display : Bafang

Support level : 5 + Walk Assist

Weight : 3.4kg

276
60
95
102
238
180
238
70
155
54
276
36
24
60
47

*Specifications are subject to change without notice. In case of unexpected supply-side impacts, we will offer components of equivalent or better capabilities.

One bike. A thousand uses

Scopri tutte le configurazioni della YUBA MUNDO DB Edition, pensate per adattarsi perfettamente al tuo stile di vita

Utilizzi Bici YUBA MUNDO DB Edition

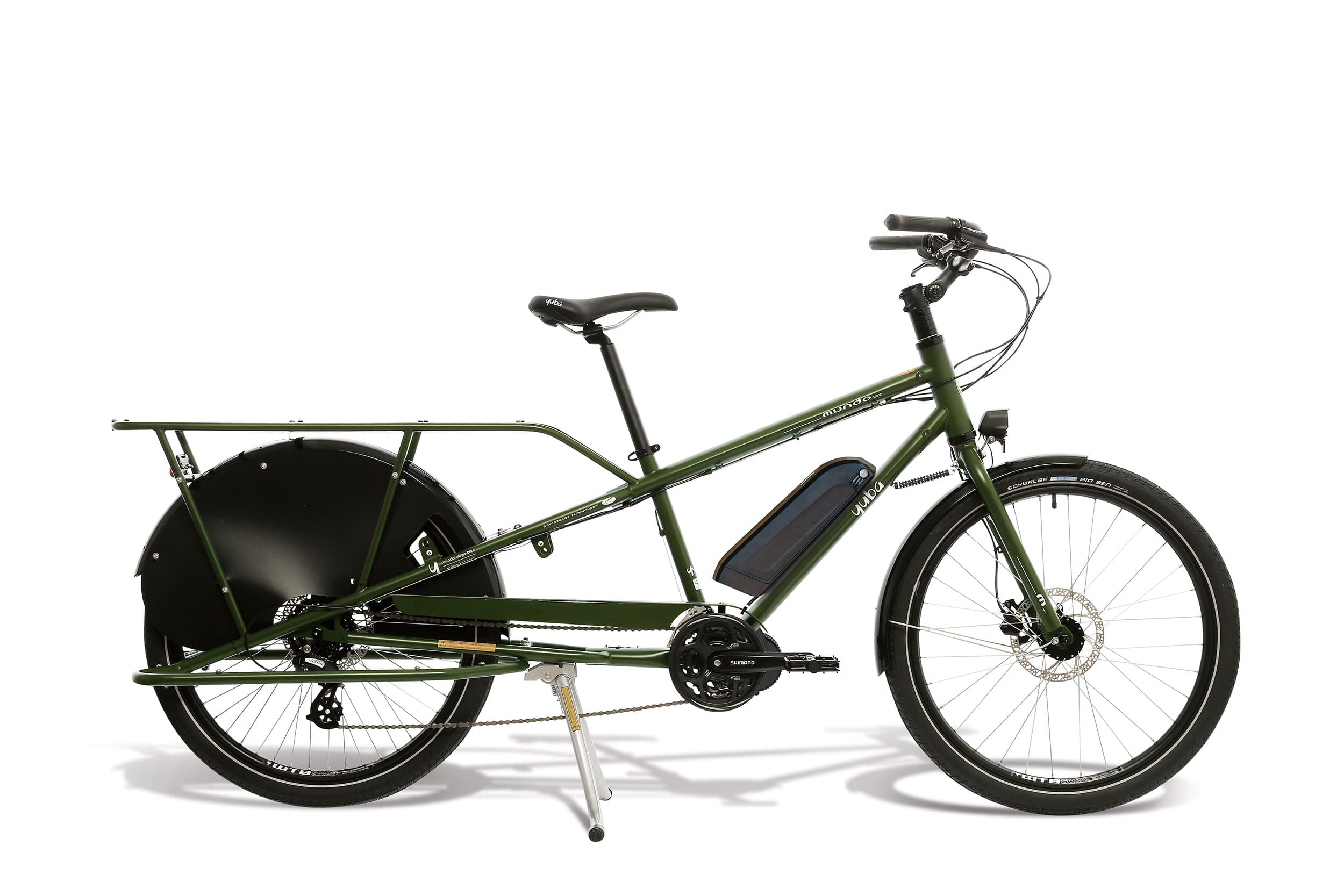

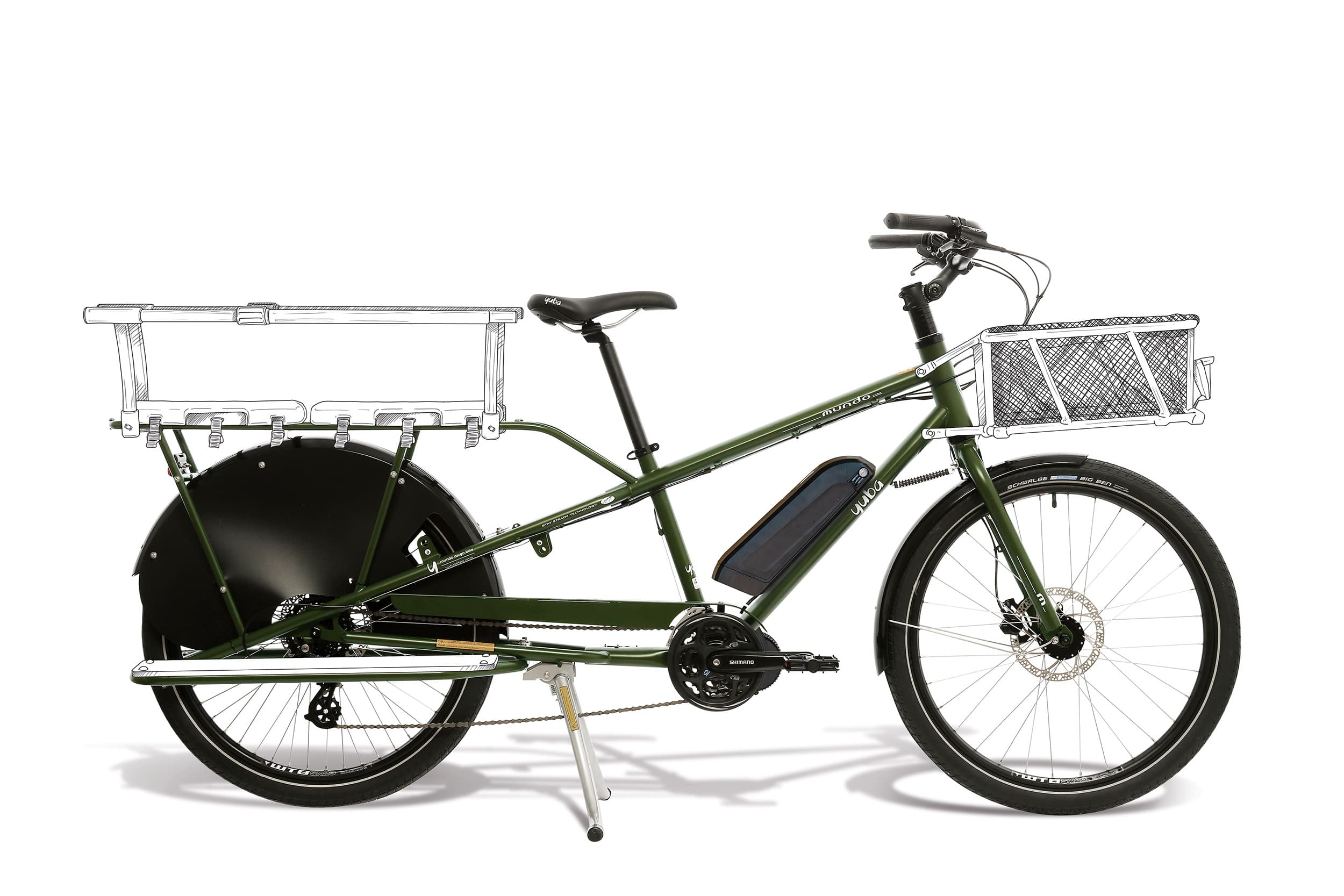

Without accessories it looks like a longer than normal bicycle, but it is the ease of riding and the incredible load capacity that make it unique.

Utilizzi Bici YUBA MUNDO DB Edition

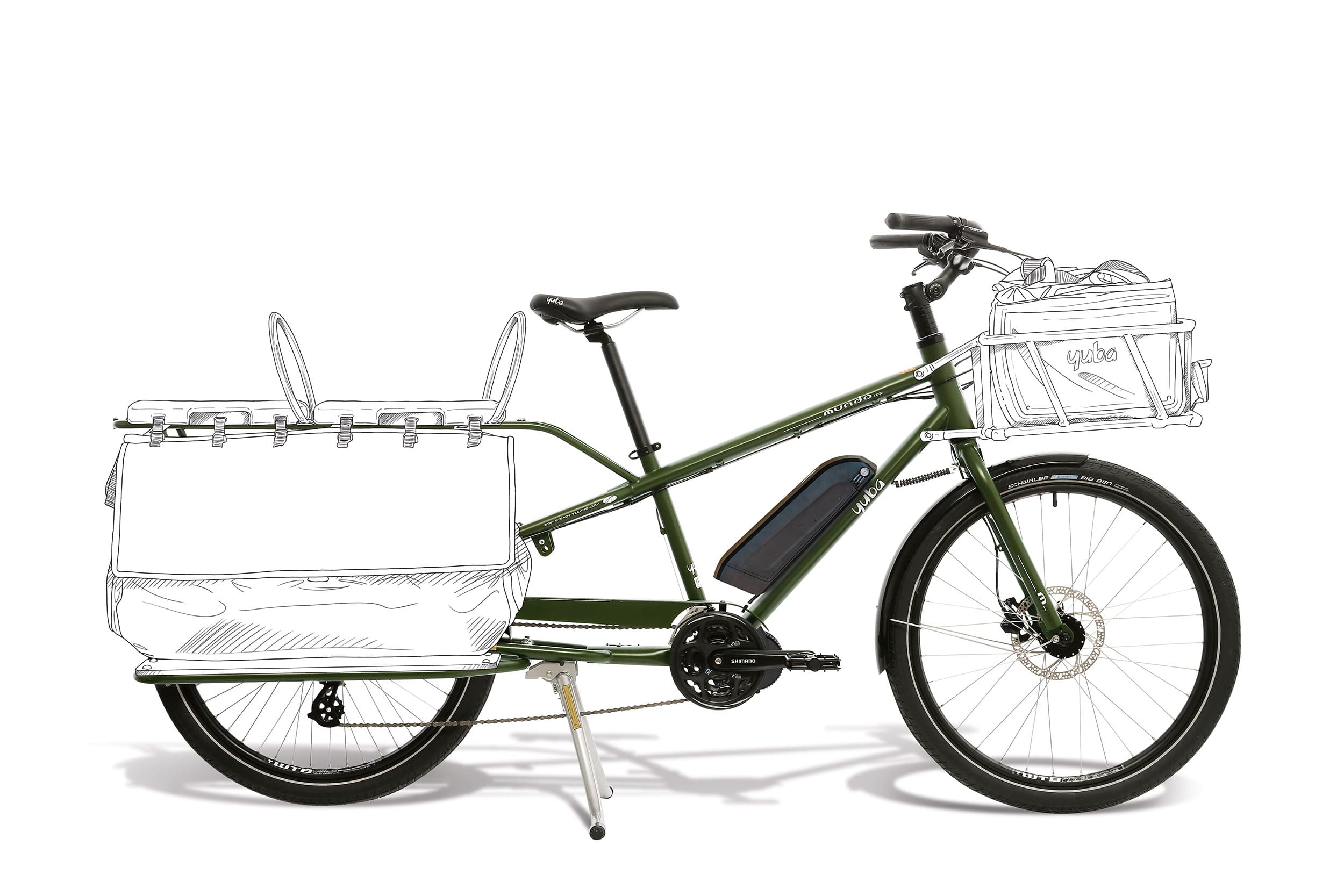

A 97 cm luggage rack to which large side bags can be attached and a shopping bag in the front basket make it a perfect car replacement.

Utilizzi Bici YUBA MUNDO DB Edition

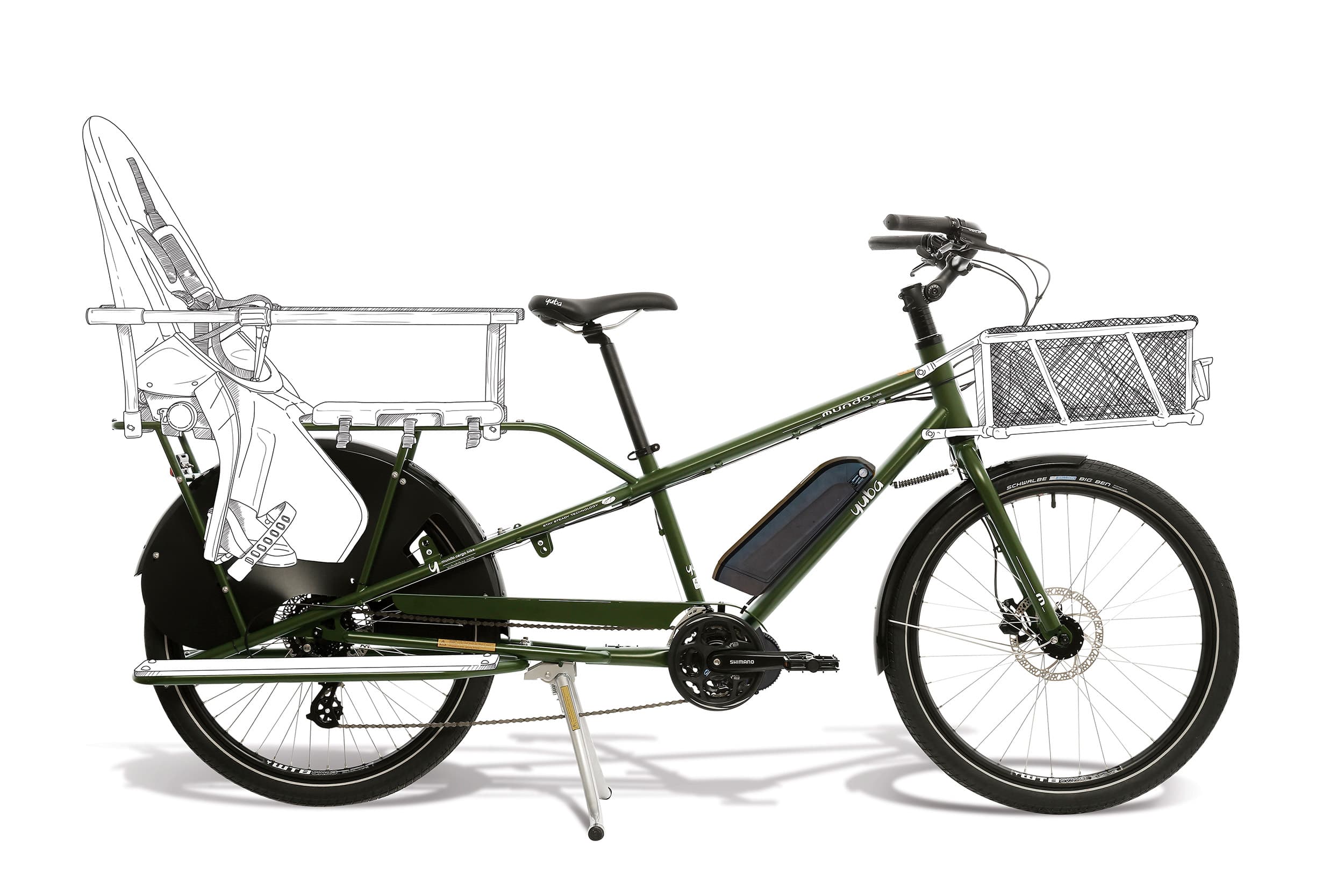

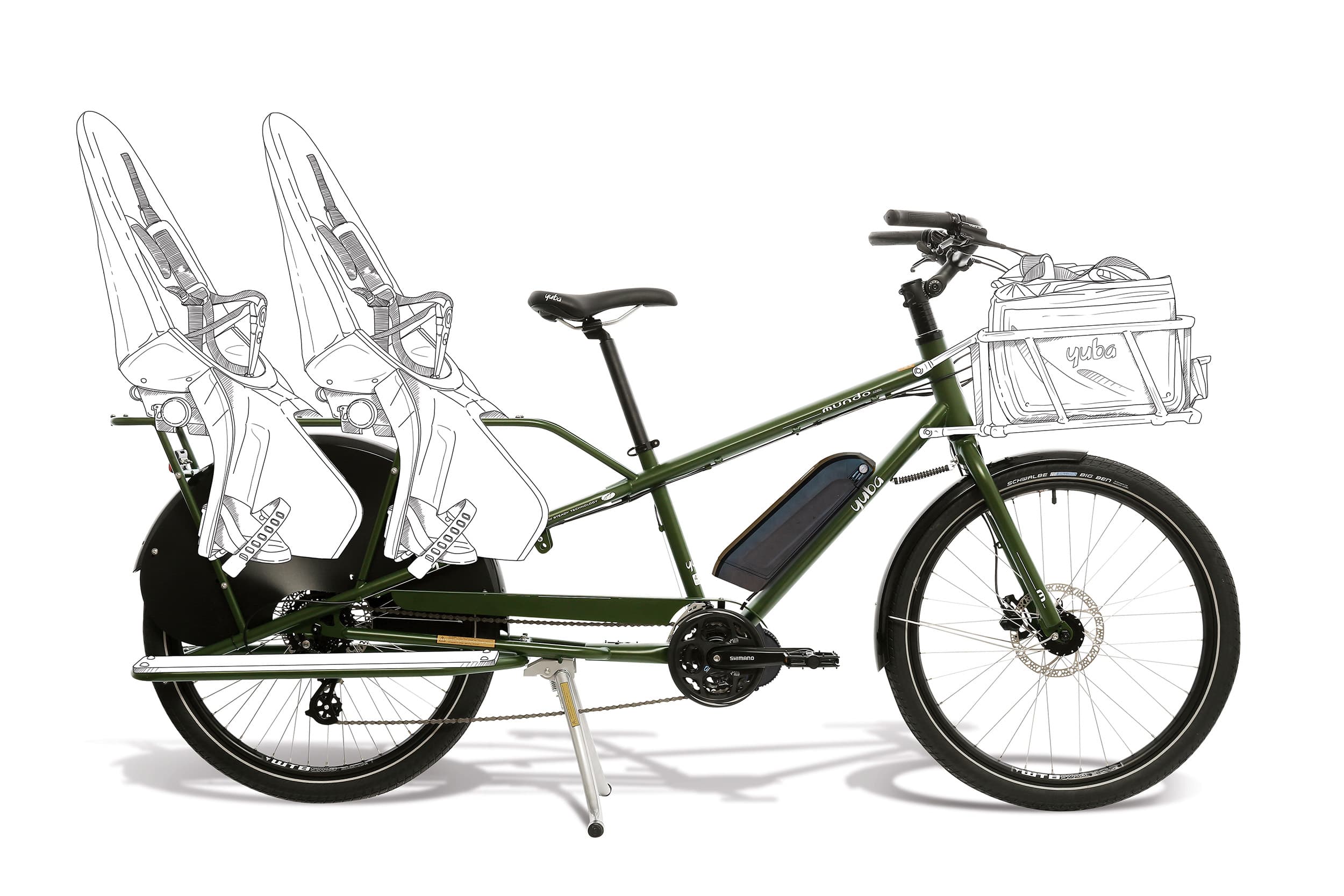

Compatible with Yepp, Qibbel and most child seats available on the market. The cargo bike is designed to carry two children safely.

Utilizzi Bici YUBA MUNDO DB Edition

Carry one child in one seat and a second older child in the back. Safety poles are optional but absolutely recommended.

Utilizzi Bici YUBA MUNDO DB Edition

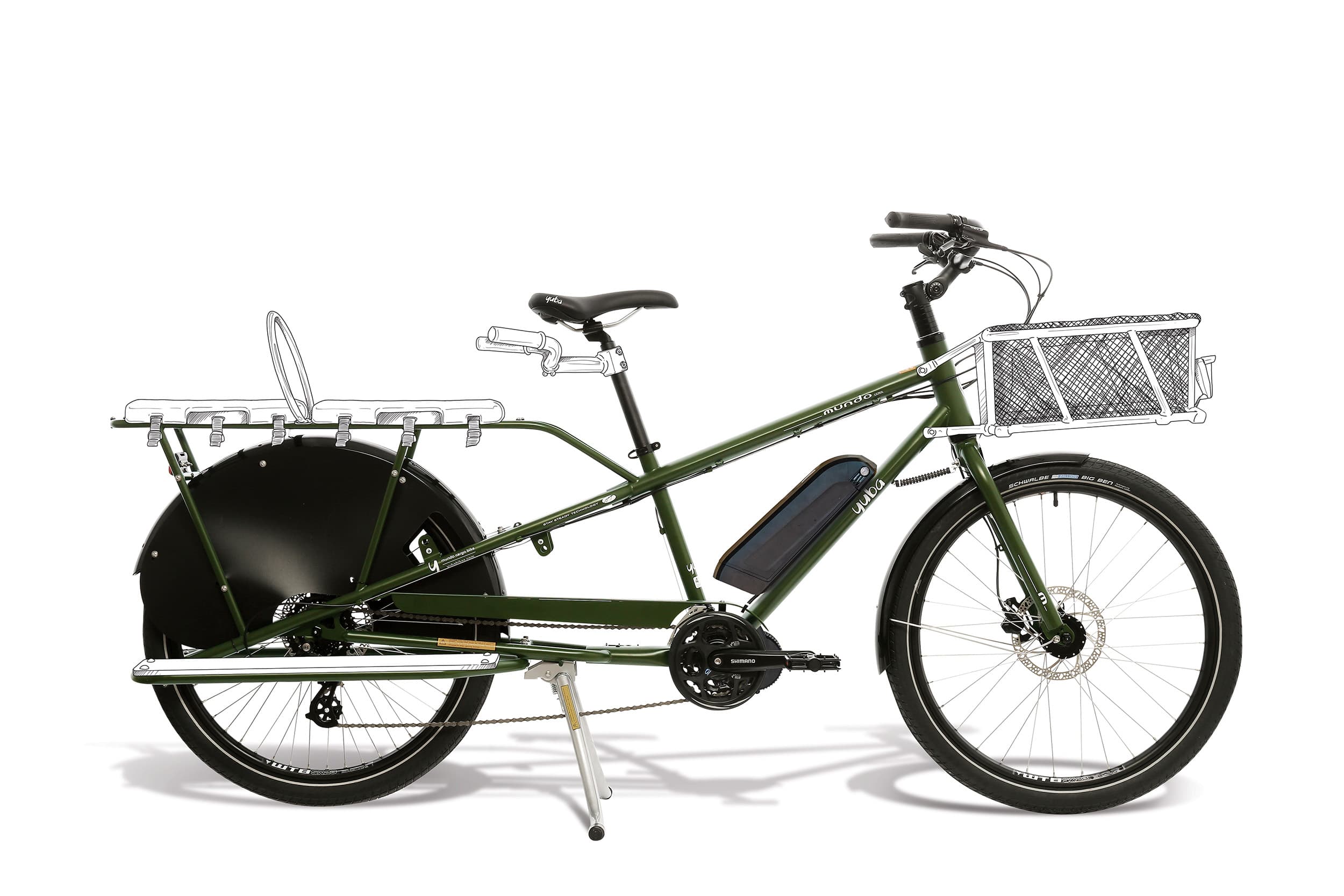

Safely carry two older children. The safety bars are designed to support, protect and entertain your children.

Utilizzi Bici YUBA MUNDO DB Edition

Carries one or two adult passengers. Side rails and handles to choose from ensure comfort and secure hold during the ride.

Utilizzi Bici YUBA MUNDO DB Edition

Use the cargo bike in all weather conditions, protecting your cargo. Your passengers will always have a panoramic view.

Utilizzi Bici YUBA MUNDO DB Edition

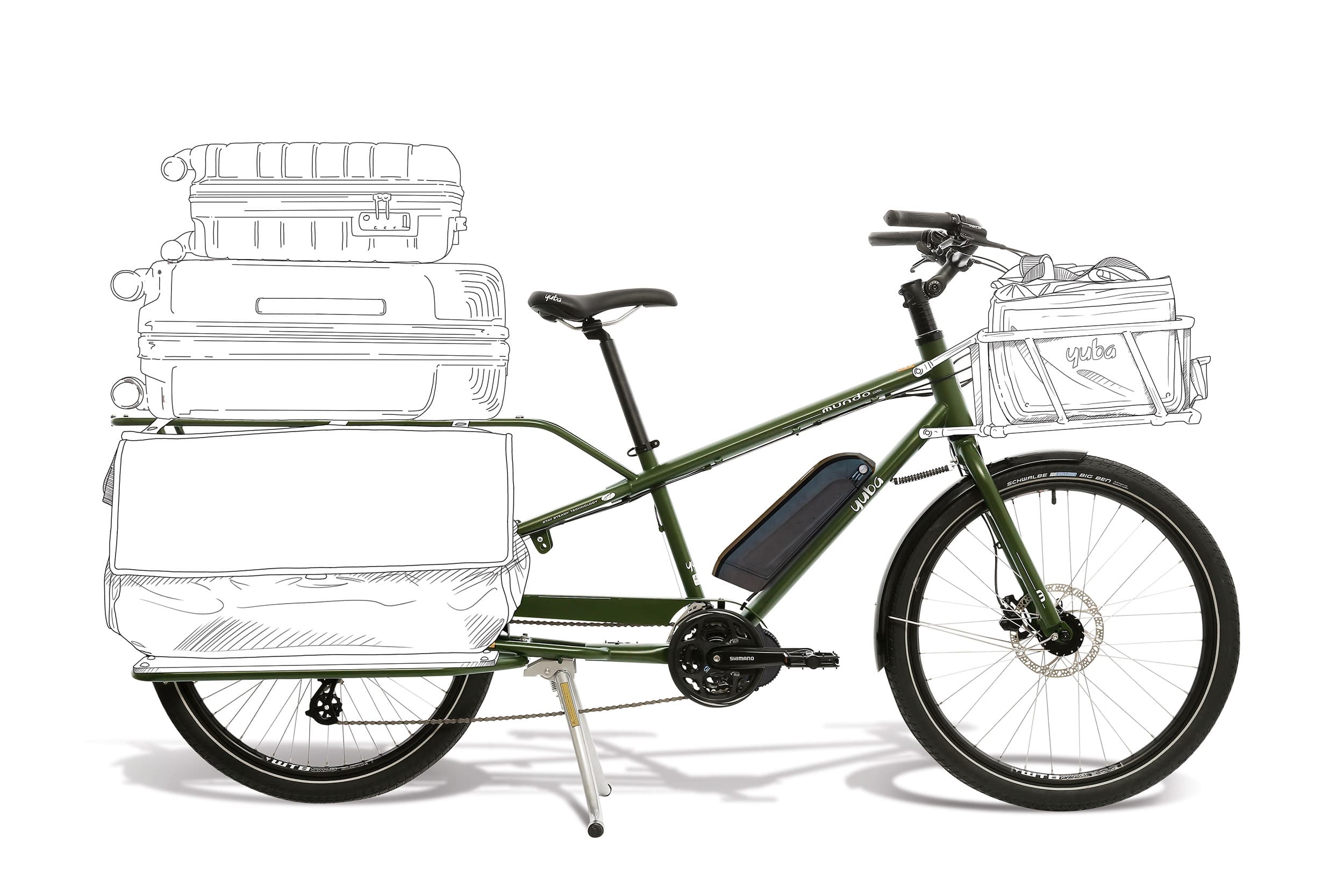

Carries suitcases by securing them with straps, attaches large panniers to the rack, and combines a shoulder bag in the basket. Up to 250kg including rider.
