Taga Family Electric, technical analysis

After driving the vehicle, we carried out our usual meticulous technical analysis of Taga Family Electric.

There are many features that make this vehicle unique and multifunctional. We will discover them in detail starting with its very soul: the frame.

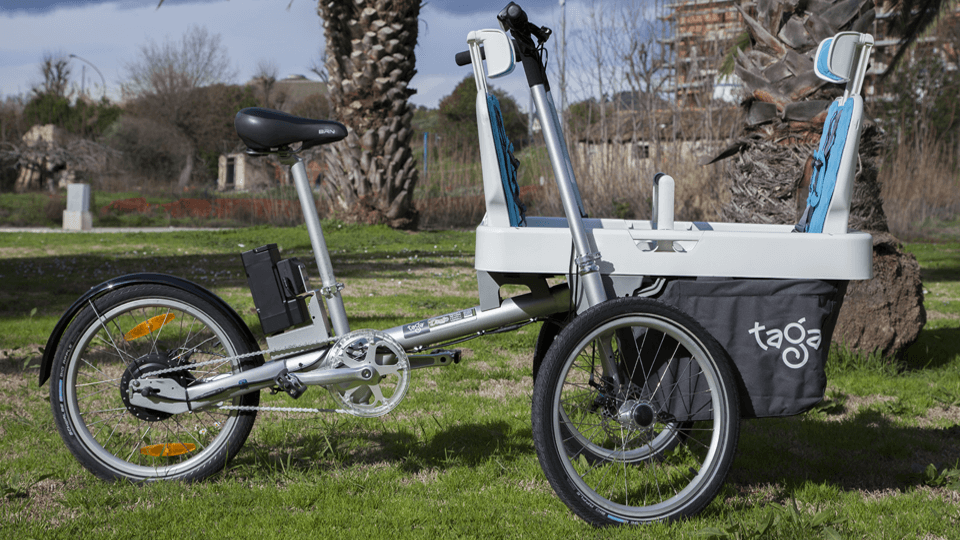

Taga Family Electric, the technical analysis of the chassis

The Taga Family frame is made entirely of ultra aluminium. Its strength and lightness make it one of the lightest on the market, but also the most attractive, thanks to its chrome-plated swingarm and its shiny silver finish.

Beautiful but functional. In addition to the pleasing design, the light weight, only 22 kg for 164 cm length, should also be emphasised. In addition, the practicality of folding in two parts without the aid of any work tools, it allows us a convenient storage in small spaces.

Gearbox, brakes and suspension of Taga Family Electric.
Highest quality and response.

The Taga Family Electric has a gearbox from the family Shimanoto be precise the  Nexus three-speed internal gearbox. A very reliable gearbox that does not require routine maintenance because it is always aligned.

Available on every wheel, the hydraulic disc brake system of the PromaxIt works with great response on the vehicle, without affecting its stability. Stability also guaranteed by its 20' rims, synonymous with solidity on the road.

The FRONTAL BASKET
surprising in its lightness and scope.

Much care has been taken in the development of the Cargo Basket. This multifunctional element, thanks to its multiple accessories, can perform multiple functions depending on the need of the moment: from transporting children, to loading groceries and up to a maximum 70 kg.

The basket is made entirely of steel and covered with recycled polypropylene, which makes it resistantbeautiful and easy to install or fold up as a space-saving briefcase weighing 5 kg, almost 42 cm high.

ELECTRIC FAMILY TAGA,
engine kit and technical analysis

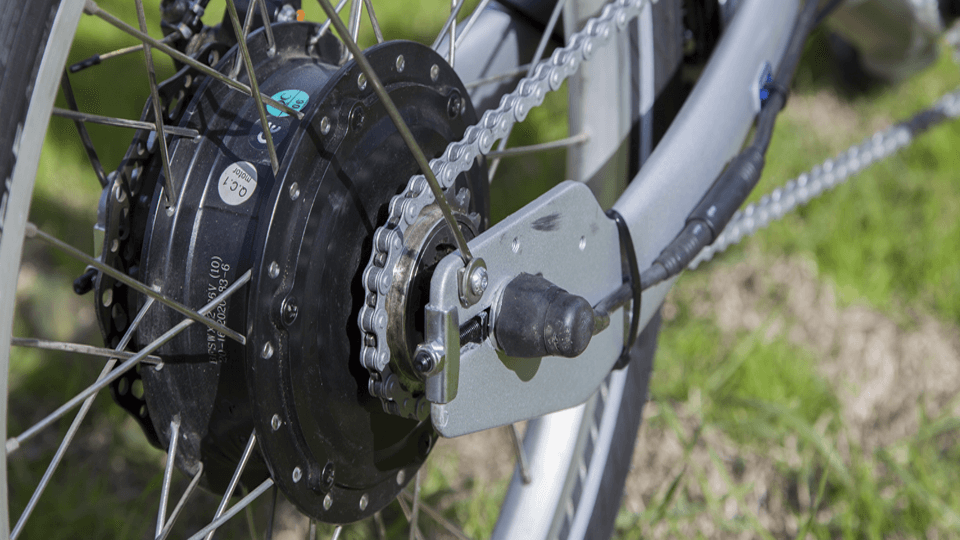

The 250 W motor, located in the wheel hub back of the Taga Family, is made by the Bafang. It is fed with a 36 V lithium battery and develops a top speed of 23 km/h.

The kit includes the various housings, wiring and control display from which distances and battery life can be checked.

Particular attention must be paid to battery charging times and the distances that can be covered. With a few hours of recharging we have a vehicle that can travel considerable distances equal to 50 km with the maximum performance of the vehicle.

Create now with us the
TAGA FAMILY perfect
for your needs "Create now

SPECIAL ACCESSORIES FOR A SPECIAL BIKE

Seats, safety bars, folding seats, harnesses and headrests are just some of the accessories made for the Taga Family. High-quality materials can be felt to the touch and attention to detail, combined with simple installation, are the first point of departure.

The possibility of carrying children or large shopping bags are taken for granted actions that we all perform on a daily basis. But performing them in the best possible way and with ease, is not always so obvious. For this reason, accessories Taga family have an added value: they are not taken for granted. On the contrary, they are designed for space, practicality and comfort are the first elements you can live with on a daily basis.

Don't miss the video of the Taga Family test drive. And if your interest goes further, we invite you to follow our column: the technician repliesto find news and new curiosities about the bike you have just met.
